These diagrams are based on my notes of the DC Datamodel meeting...

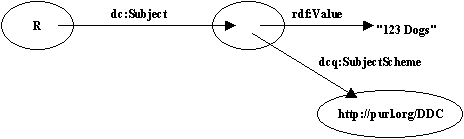

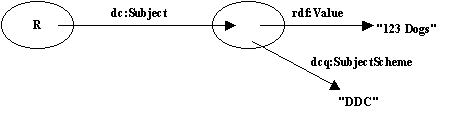

<?xml:namespace href="http://www.w3c.org/RDF/" as="RDF"?> <?xml:namespace href="http://purl.oclc.org/RDF/DC/" as="DC"?> <RDF:RDF> <RDF:Description RDF:HREF="R"> <DC:Subject> <RDF:Description> <DCQ:SubjectScheme>DDC</DCQ:SubjectScheme> <RDF:Value>123 Dogs</RDF:Value> </RDF:Description> </DC:Subject> </RDF:Description> </RDF:RDF>...or... same, but with node rather than text value for DCQ:SubjectScheme:

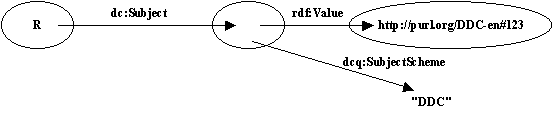

...or... same, but with node rather then text RDF:Value:

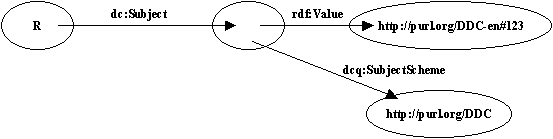

...or... same, but with node values for RDF:Value and DCQ:SubjectScheme:

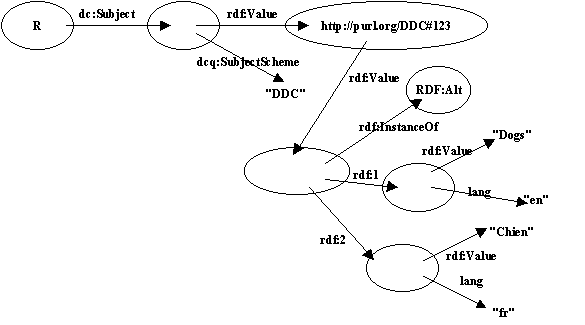

<?xml:namespace href="http://www.w3c.org/RDF/" as="RDF"?> <?xml:namespace href="http://purl.oclc.org/RDF/DC/" as="DC"?> <RDF:RDF> <RDF:Description RDF:HREF="R"> <DC:Subject> <RDF:Description> <DCQ:SubjectScheme>DDC</DCQ:SubjectScheme> <RDF:Value RDF:HREF="http://purl.org/DDC#123"/> </RDF:Description> </DC:Subject> </RDF:Description> <!-- This part typically maintained by DDC authority... --> <RDF:Description RDF:HREF="http://purl.org/DDC#123"> <RDF:Value> <RDF:Alt> <RDF:LI> <RDF:Description> <RDF:Value>Dogs</RDF:Value> <lang>en</lang> </RDF:Description> </RDF:LI> <RDF:LI> <RDF:Description> <RDF:Value>Chien</RDF:Value> <lang>fr</lang> </RDF:Description> </RDF:LI> </RDF:Alt> </RDF:Value> </RDF:Description> </RDF:RDF>
